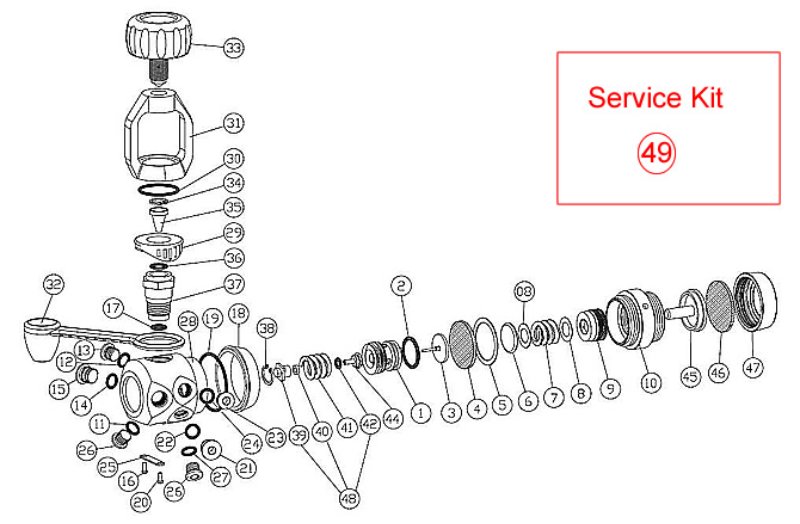

Predator Balanced Diaphragm First Stage
| No. | Code Supplier |
Name | Price | ||
|---|---|---|---|---|---|
| 1 | SP90450 MO26V06Y101 |
HOUSING | $49.48 | ||
| 2 | SP90451 MO26V06Y102 |
O-RING | $0.77 | ||
| 3 | SP90452 MO26V06Y103 |
PISTON | $11.85 | ||
| 4 | SP90453 MO26V06Y104 |
DIAPHRAGM | $6.38 | ||
| 5 | SP90454 MO26V06Y105 |
WASHER | $2.37 | ||
| 6 | SP90455 MO26V06Y106 |
SPRING PAD | $8.66 | ||
| 7 | SP90456 MO26V06Y107 |
SPRING | $11.85 | ||
| 8 | SP90457 MO26V06Y108 |
WASHER | $0.77 | ||
| 9 | SP90458 MO26V06Y109 |
INTERMEDIATE PRESSURE ADJUSTING SCREW | $23.69 | ||
| 10 | SP90459 MO26V06Y110 |
DIAPHRAGM LOCK NUT | $72.27 | ||
| 11 | SP90460 MO26V06Y111 |
O-RING | $0.77 | ||
| 12 | SP90461 MO26V06Y112 |
O-RING | $0.77 | ||
| 13 | SP90462 MO26V06Y113 |
LP PORT PLUG | $5.47 | ||
| 14 | SP90463 MO26V06Y114 |
O-RING | $0.77 | ||
| 15 | SP90464 MO26V06Y115 |
HP PORT PLUG | $5.47 | ||
| 16 | SP90465 MO26V06Y116 |
SERIAL NUMBER PLATE PIN | $0.77 | ||
| 17 | SP90466 MO26V06Y117 |
O-RING | $0.77 | ||
| 18 | SP90467 MO26V06Y118 |
BODY RING | $53.04 | ||
| 19 | SP90468 MO26V06Y119 |
O-RING | $1.18 | ||
| 20 | SP90469 MO26V06Y120 |
SERIAL NUMBER PLATE PIN | $0.77 | ||
| 21 | SP90470 MO26V06Y121 |
LP PORT PLUG | $5.47 | ||
| 22 | SP90471 MO26V06Y122 |
O-RING | $0.77 | ||
| 23 | SP90472 MO26V06Y123 |
LP PORT PLUG | $5.47 | ||
| 24 | SP90473 MO26V06Y124 |
O-RING | $0.77 | ||
| 25 | SP90474 MO26V06Y125 |
SERIAL NUMBER PLATE | $3.92 | ||
| 26 | SP90475 MO26V06Y126 |
HP PORT PLUG | $5.47 | ||
| 27 | SP90476 MO26V06Y127 |
O-RING | $0.77 | ||
| 28 | SP90477 MO26V06Y128 |
MAIN BODY | $216.07 | ||
| 29 | SP90478 MO26V06Y129 |
YOLK SADDLE | $2.00 | ||
| 30 | SP90479 MO26V06Y130 |
O-RING | $0.77 | ||
| 31 | SP90480 MO26V06Y131 |
YOKE | $53.04 | ||
| 32 | SP90481 MO26V06Y132 |
ANTI-DUST CAP | $5.60 | ||
| 33 | SP90482 MO26V06Y133 |
YOKE KNOB | $15.67 | ||
| 34 | SP90483 MO26V06Y134 |
S/S RETAINING RING | $1.55 | ||
| 35 | SP90484 MO26V06Y135 |
FILTER | $6.38 | ||
| 36 | SP90485 MO26V06Y136 |
O-RING | $0.77 | ||
| 37 | SP90486 MO26V06Y137 |
YOLK RETAINER | $25.52 | ||
| 38 | SP90487 MO26V06Y138 |
S/S RETAINING RING | $1.55 | ||
| 39 | SP90488 MO26V06Y139 |
BALANCE CHAMBER | $11.85 | ||
| 40 | SP90489 MO26V06Y140 |
TEFLON WASHER | $4.74 | ||
| 41 | SP90490 MO26V06Y141 |
SPRING | $7.84 | ||
| 42 | SP90491 MO26V06Y142 |
O-RING | $0.77 | ||
| 44 | SP90493 MO26V06Y144 |
HP SEAT | $23.69 | ||
| 45 | SP90494 MO26V06Y145 |
PRESSURE COMPENSATING PISTON | $15.67 | ||
| 46 | SP90495 MO26V06Y146 |
ENVIRONMENTAL SEALING DIAPHRAGM | $4.74 | ||
| 47 | SP90496 MO26V06Y147 |
ENVIRONMENTAL CAP | $33.35 | ||
| 48 | SP90498 M026A184 |
BALANCE CHAMBER COMPLETE | $18.23 | ||
| 49 | SP90497 M026A03 |
SERVICE KIT Predator Balanced 1st Stage (KIT INCLUDES 1 X SP90483 1 X SP90484 1 X SP90485 1 X SP90466 1 X SP90479 1 X SP90495 1 X SP90453 1 X SP90451 1 X SP90493 1 X SP90489 1 X SP90487 1 X SP90468 1 X SP90476 1 X SP90491 ) M026-A03 | $42.05 | ||
